Overview

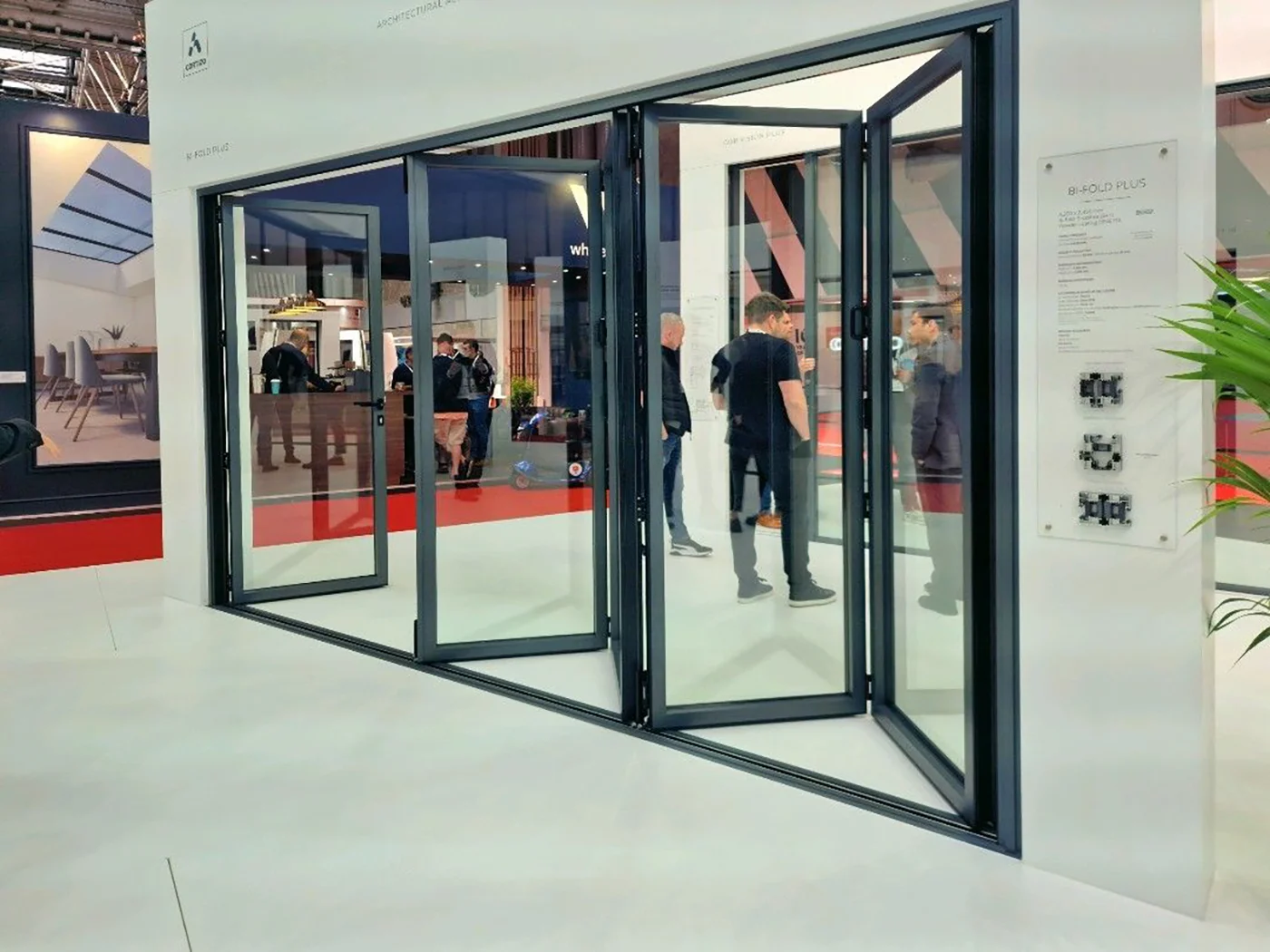

Cortizo Introduce The Bi-Fold DoorPlus
The most modern and minimalistic ‘’Bi-folding Door Plus’’ that Cortizo has ever designed. Cortizo new bi-folding door is a definite game changer for the modern and contemporary homes of 2023.
Unique Engineering
Cortizo Bi-Fold Door Plus.

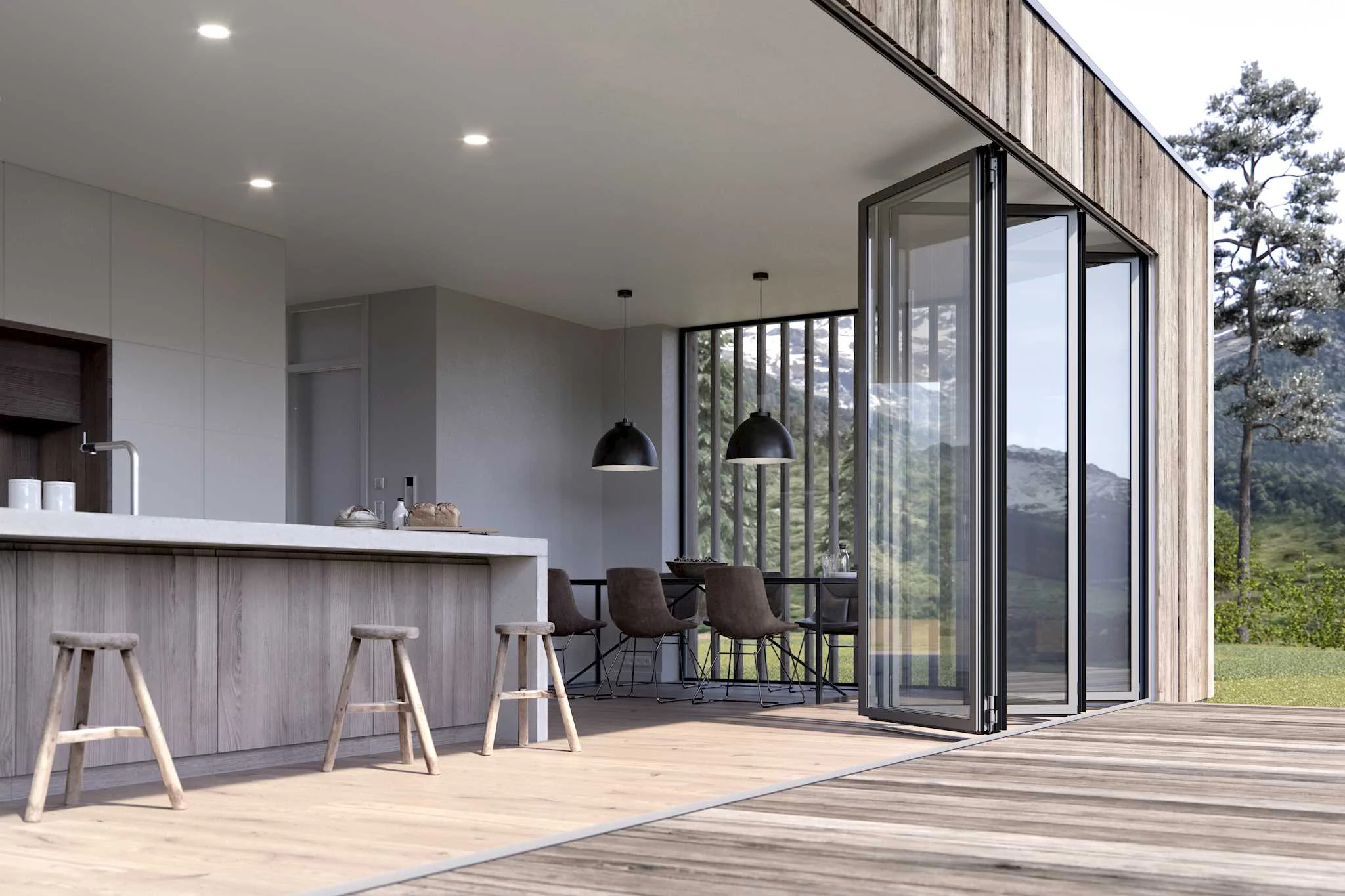

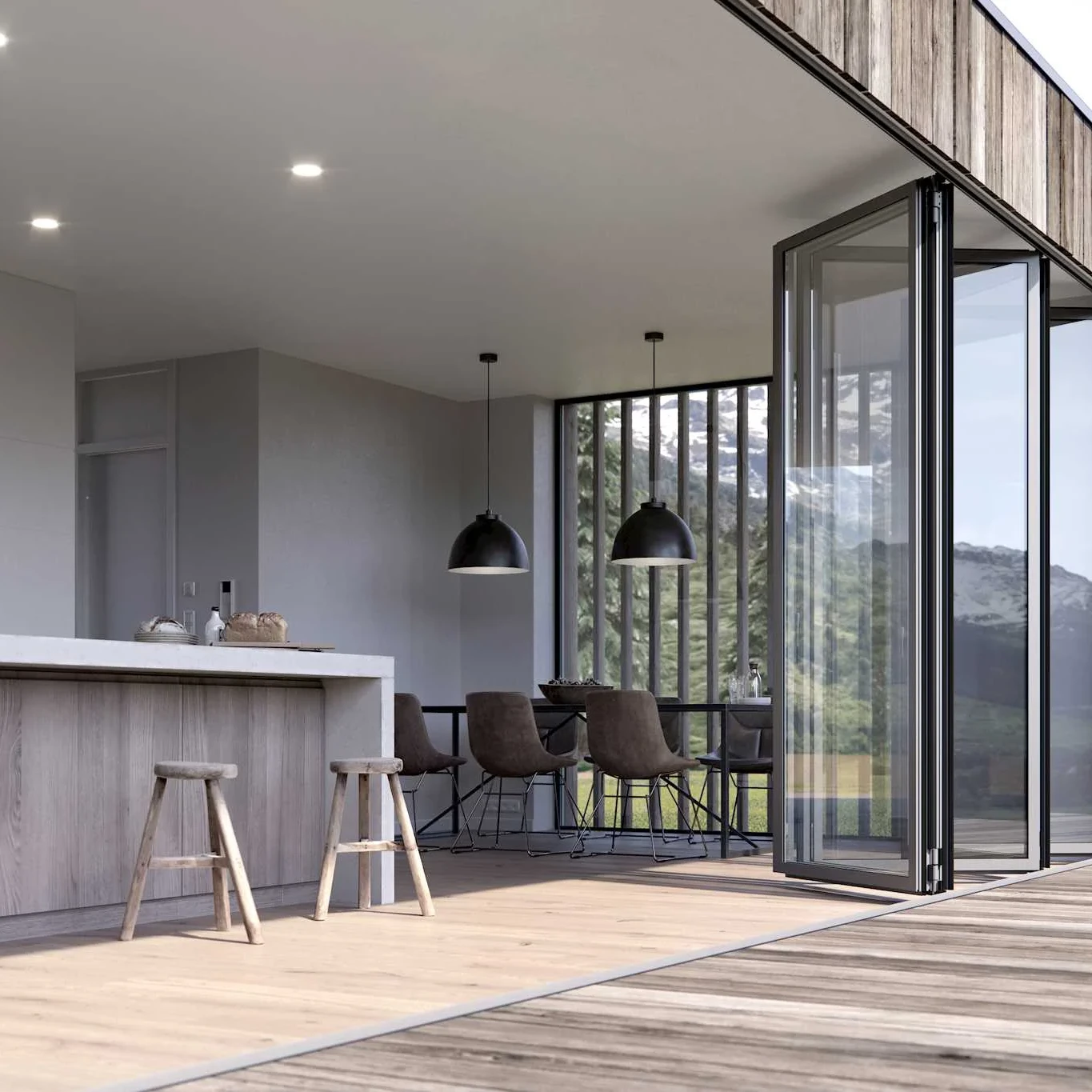

The bi-fold door plus offers a unique design and engineering that enhances the products minimal aesthetic appeal, with a redesigned, highly insulated 110mm narrow sight line and It’s enhanced, heavy duty dual track runners that make the large panoramic glass panel easy to glide up to width 1.3m & 3m in height, which is the ideal door for your luxury high ceiling home.
20 Year Guarantee on our Installed Products.
Largest Bi-Fold Door Panel In UK.
U-Value as low as 0.8W/m2K or Below.
Slimmest Sightline Door In the Market.
Key Features
- Sightline: 110mm.
- Excellent energy cost - U-Value as low as 0.8 W/m2K.

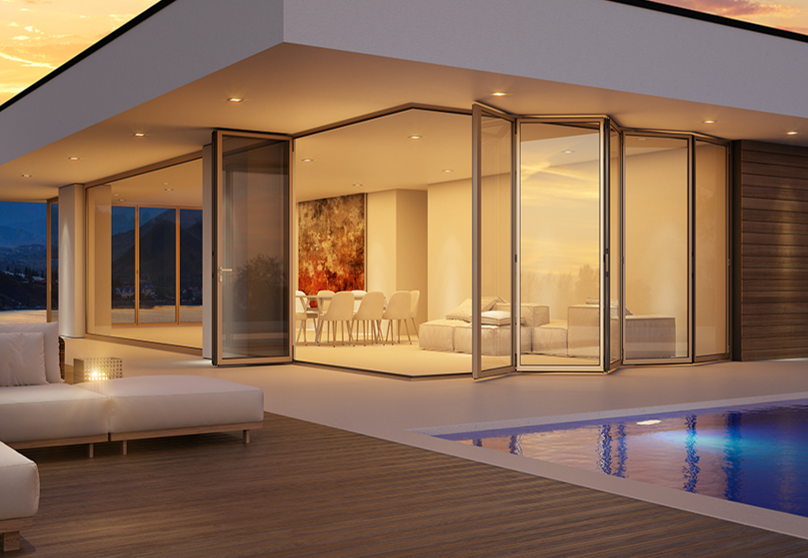

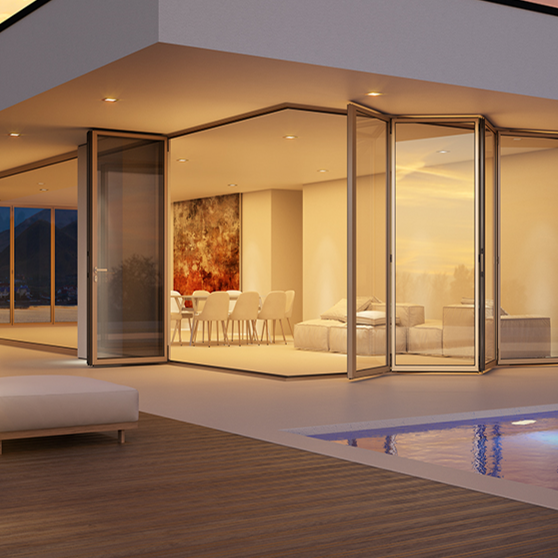

- Up to 14 glass panels inward/outward opening including moving corner post.
- Dual track runner for guaranteed smooth glide.
- Every panel is light but solid for better performance.
- Suitable for both residential and commercial projects.
- 8 multi-point lock & steel shoot-bolt locking rods.
- Options to embed the lower frame on floor for step free excess.
- All the gearing is concealed & cannot be seen when the door is closed.
- Manufactured in-house by Cortizo fully qualified fabricators.
Technical Detail
- Maximum glazing thickness: 48mm
- Acoustic insulation: 45 DB
- Maximum sash possibility 2 to 14 sashes
- Maximum width of a sash (L) = 1300mm
- Maximum height of a sash (H) = 3000mm
- Maximum weight single sash: 120kg
- Water tightness: (EN 12208:200) CLASE E750
- Wind resistance: (EN 12207): CLASE A4
- Thermal insulation: Uw from 0.8 (W/m2K)
- Security test: (PAS 24) Passed
- Reference test 3 Sashes. 321.2,70 X 2.50mm
Key Features
- Sighline:100mm
- Thermal Performance: Excellent Energy cost - U-Value as low as 1.2W/m2K.
- Glazing: Available in double or triple glazed options.
- Sashes: Up to 15 glass panels inward & outward opening including moving corner post.
- Track: Dual Track Runner for smooth Glide Guaranteed.
- Panels: Every panel is extremely light but solid. Every joint Gulled injected to get better performance.
- suitable: perfect for Residential and Commercial projects.
- Strong & Secure: 8 multi-point locking on the master door & steel shoot-bolt locking rods.
- Lower Frame: Options to embed the lower frame on floor for step free excess.
- Gearing: All the gearing is concealed & cannot be seen when the door is closed.
- Manufactured in-house by Cortizo fully qualified fabricators.
Technical Detail
- Maximum glazing thickness: 34mm
- Maximum width of a sash (L) = 1300mm
- Maximum weight single sash: 120kg
- Acoustic insulation: Maximum glazing 34mm
- Water tightness: (EN 12208:200) CLASE 9A
- Wind Resistance: (EN 12210:2000) CLASE A3
- Thermal Insulation: Uw from 1.2 (W/m2K)
- Security Test: (PAS 24:2012) Passed
- Reference test 2701 x 2517 mm. 3 sashes Set-up:330
- Sighline:100mm
- Thermal Performance: Excellent Energy cost- saving Fully insulated profile systems to enhance the thermal performance, U-Value as low as 1.2W/m2K.
- Glazing: Available in double or triple glazed options.
- Sashes: up to 15 glass panel inward and outward opening including moving corner post.
- Track: Dual Track Runner for smooth Glide Guaranteed.
- Panels: every panel is extremely light but solid. Every joint Gulled injected to get better performance i.e., it joints will never move or twist with any traffic condition.
- suitable: perfect for Residential and Commercial projects.
- strong and secure: PAS23/24 Accreditations featuring an 8 multi-point locking on the master door, which also include steel shoot-bolt locking rods.
- Lower Frame: options to embed the lower frame in the floor for step free excess.
- Gearing: all the gearing is concealed, that cannot be seen when the door is closed.
- Manufactured in-house by Cortizo fully qualified fabricators.
- Maximum glazing thickness: 34mm
- Maximum width of a sash (L) = 1300mm
- Maximum weight single sash: 120kg
- Acoustic insulation: Maximum glazing 34mm
- Water tightness: (EN 12208:200) CLASE 9A
- Wind Resistance: (EN 12210:2000) CLASE A3
- Thermal Insulation: Uw from 1.2 (W/m2K)
- Security Test: (PAS 24:2012) Passed
- Reference test 2701 x 2517 mm. 3 sashes Set-up:330
Strong & Secure
We understand security is important; that’s why our products are designed with a combination of aesthetics and safety. Our products are certified with PAS 24, compliant with UK BUILDING REGULATION and Insurance requirements, ensuring the best security standards.
We offer access control solutions for master traffic panel, including fingerprint/bio metric, keypad/mobile access and yale cylinders. which is one of the most secure revolutionary locking systems, approved by the police and has achieved the highest Kite-mark star rating.
For any questions regarding security improvements in your household, please contact our team.
QR Quality Check
We are proud to have our own manufacturing facility and take full accountability for the quality of our products, offering industry-leading 20-year guarantee with every installation. Our success is built on quality with no compromise, management of lead times, advanced machinery, highly trained engineering, and ensuring all products go through rigorous quality testing, giving you peace of mind that you’re choosing something that is built to last.
Having our in-house production facility in Croydon, gives you the full control to deal directly with us ensuring that your bespoke products are tailored according to your choice, giving you full control of all the aspects of the order, survey, delivery, and installation.
Choose Your Colour
We offer four standard colour options: Black, white, anthracite grey, and anthracite grey textured, as well as a huge selection of 200+ RAL colours.
We can cater for any colour requirements you may have, even if your colour is not available on the 200+ RAL options, we would be happy to assist you in finding your ideal colour to perfectly fit your requirements.
With Blinds
Bi-Fold Doors With Blinds.
We also offer premium Integral blinds which perfectly compliment any bi-folding door. Seamlessly integrated and easy to operate, they’re available as manual, solar, battery-powered, and mains powered. Ideal for privacy-screening and controlling light, uniblinds are contained within the window itself and can be concealed discreetly when not in use.
